    Tank top unit

    One fitting, many functions

    A multitude of valves and cleaning systems - combined under a single DIN connection

Tank top unit

A true all-rounder

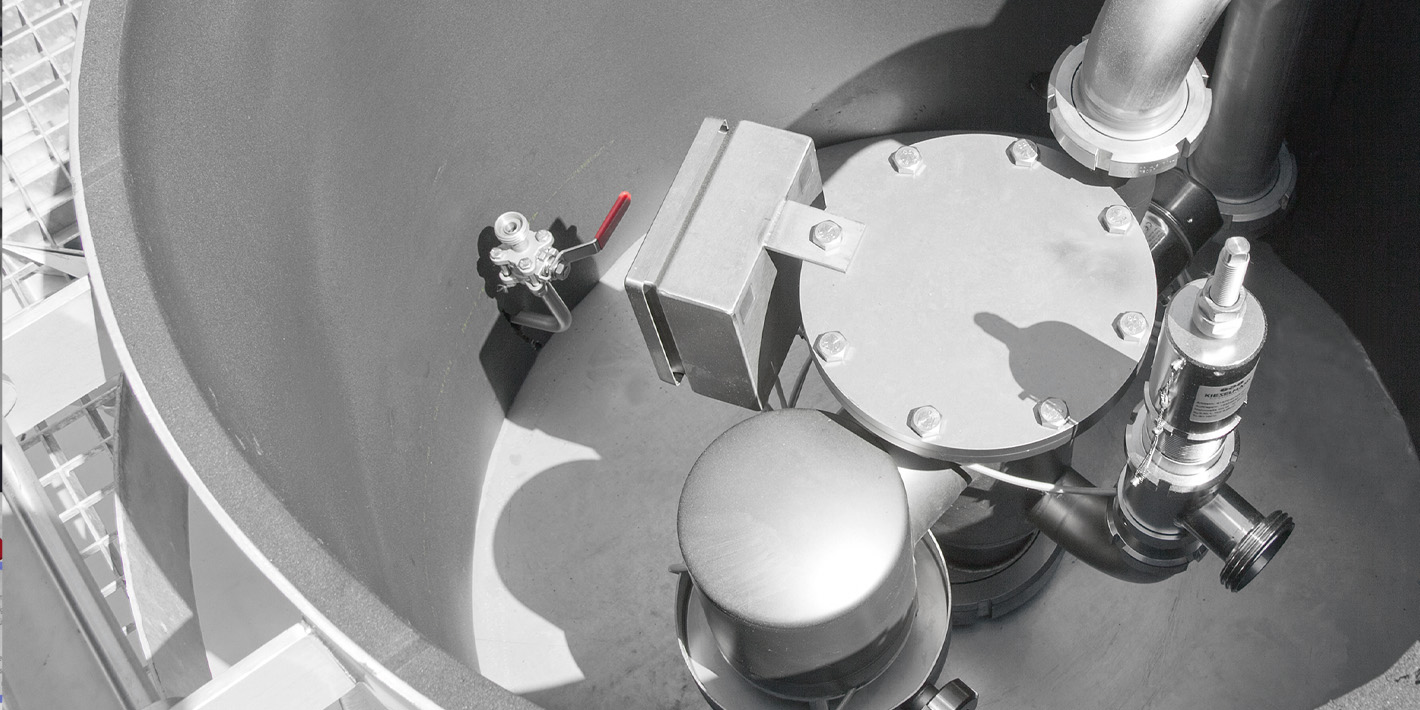

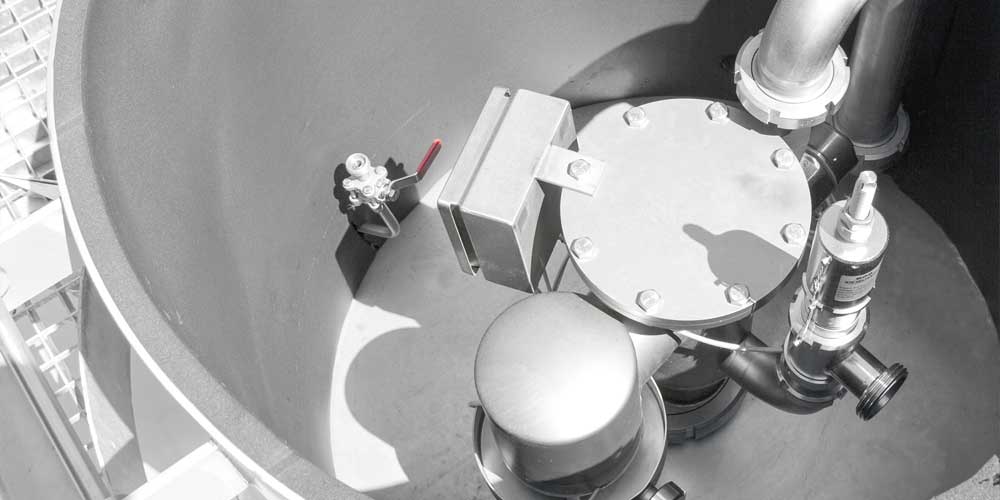

The KIESELMANN tank top unit TDAM is a combination of overpressure and underpressure protection, CO2 recirculation and tank cleaning. The cost-effective design with only a single DIN connection to the tank makes an expensive tank top plate with various connections superfluous.

The overpressure protection through a component-tested, pneumatically actuated safety valve belongs to the numerous functions of the KIESELMANN tank top units. If the container pressure exceeds the set opening pressure, the valve opens automatically. An optional weight or spring-loaded vacuum valve, which opens if the set opening pressure is not exceeded, provides protection against underpressure when the tank is emptied.

Also a CO2 return, degassing, exists. The gases produced by the process are drained from the tank in a controlled manner by the gas recirculation  integrated in the switching  valve.

The interior of the tank can be cleaned by the connection of a spray nozzle or jet cleaner. The switching valve ensures that the cleaning agent is escorted directly to the tank cleaning device. Small spray nozzles in the tank top unit guarantee effective self-cleaning of the product-touched surfaces, with minimum cleaning agent consumption. Safety and vacuum valves are also cleaned from the inside (CIP).

Additional process equipment, such as for example bunging valves, measuring instruments, attachments or other fittings, can be installed in the connection piping.

• Efficient self-cleaning with low water consumption

• Single hole installation on the tank top: Only one DIN connection necessary

• Universal base for varied combinations and applications

• Maintenance-friendly: Bottom section completely removable with cleaning device

• Integrated CO2 return

Versions:

  • Tank top unit TDAM
  • Tank top unit TDAC

Technical data

Sizes

DN 50–250

Materials

in product contact

1.4301 / AISI 304 1.4404 / AISI 316L

Spray or target jet head connection

DN 20–50

Hygiene certificate

Cleaning certificate TU Munich Weihenstephan
