No sawing or grinding – ready-cut pipes delivered straight to the construction site

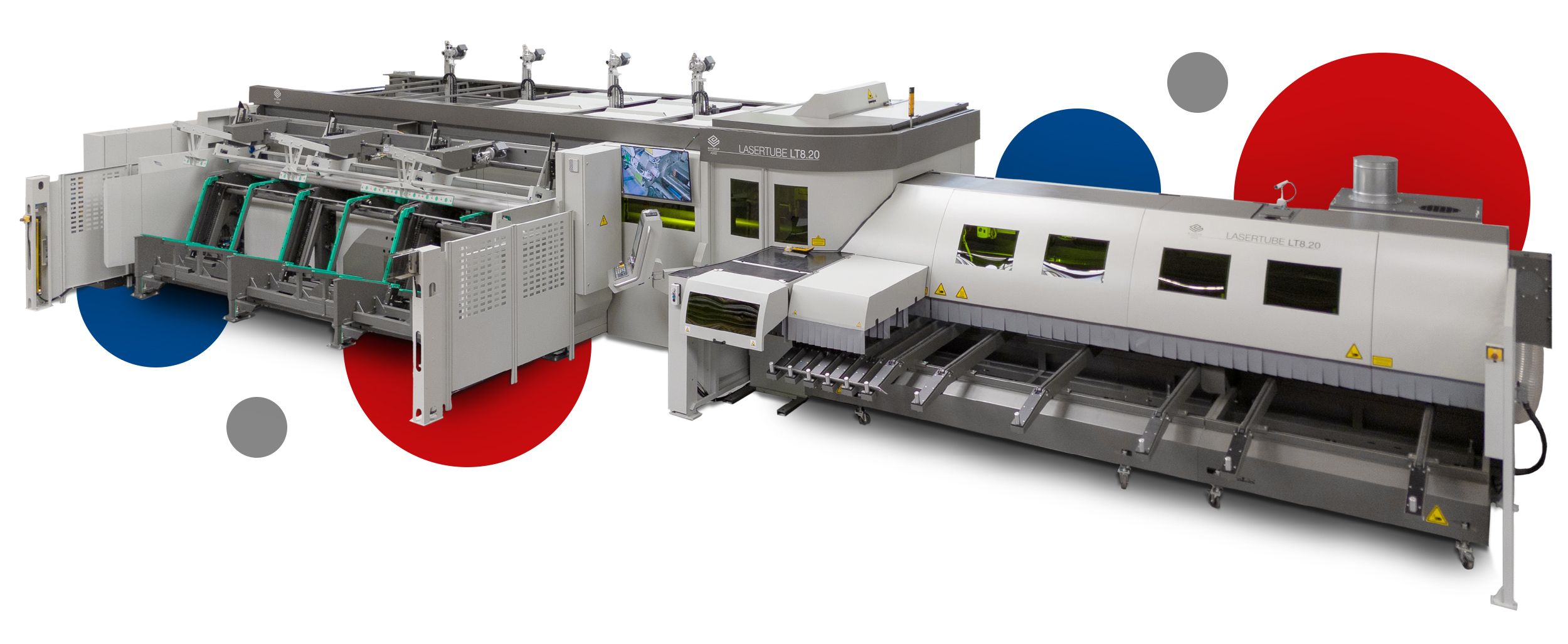

With our BLM Adige LT 8.20 3D tube laser, we offer you an efficient solution for the precise processing of a wide range of materials - directly in our production facility. We cut all the required pipe sections to length – with angles, holes, cut-outs, positioning aids, or threads – before delivery. This saves you time, money, effort, and staff.

Processing range

• Materials: Stainless steel, aluminium (others on request)
• Round tubes: Ø 12 - 240 mm
• Square & rectangular tubes: 12 - 200 mm
• Flat steel: 40 x 5 - 200 x 12 mm
• C- and U-profiles: 30 x 20 – 200 x 150 mm
• L-profiles: 30 x 20 - 200 x 120 mm
• Maximum product length: 6.500 mm
• Material thickness (stainless steel): up to 12 mm
• Weight: up to 40 kg/m

Additional functions

• Drilling & threading unit (FlowDrill): For threads from M4 - M12
• Internal lance up to 2 metres component length / over 2 metres with release agent
• Weld seam detection for position determination

Benefits

• Finished, ready-to-install components - no reworking required
• Tied, labelled delivery directly to the construction site
• Repeatable machining for series and customised products
• Faster assembly
• Lower personnel requirements
• Optimised processes
• Material savings through intelligent software nesting
• Dimensionally accurate components thanks to tight tolerances
