    Aseptic sampling valves

    Sterile, handy and safe

    Over 10,000 possible valve configurations for maximum functionality.

Aseptic sampling valves

Consistently aseptic

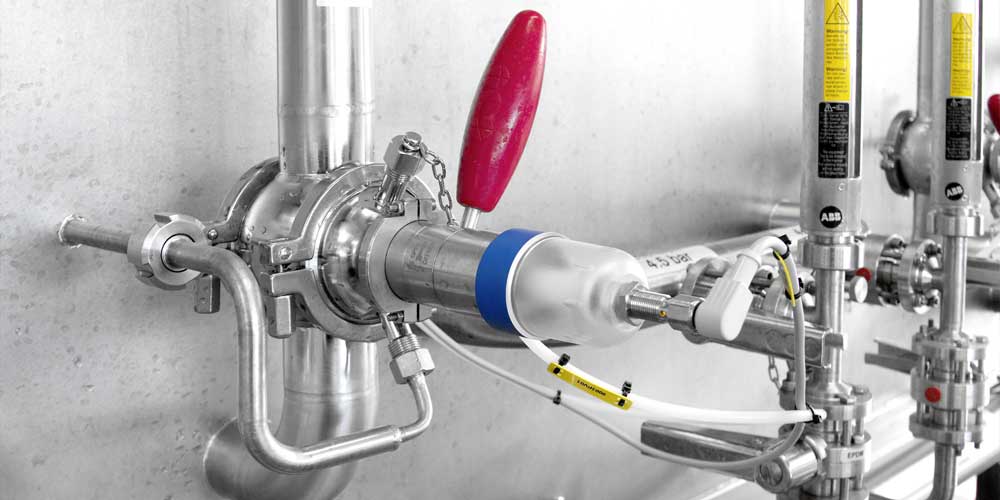

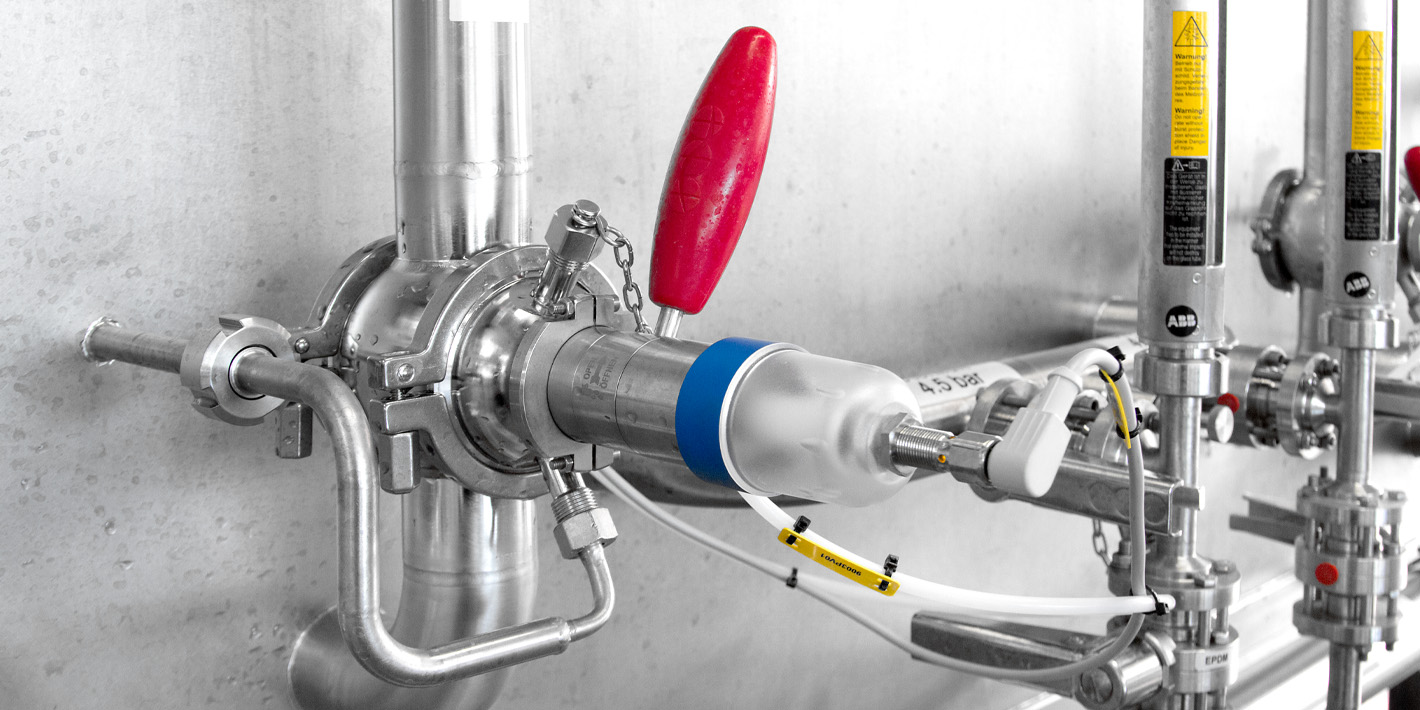

Aseptic sampling valves from KIESELMANN are ideal for sampling in laboratories and production in the food or beverage industry. They are easy to handle and prevent contamination through their consistently aseptic construction. The samples can be drawn both manually and pneumatically. Our optimised sample drawing operating concept simplifies manual sampling and impresses with its low actuation force.

Compact and easy to use

Compact design, safe cleaning and individual equipment characterize the aseptic sampling valves from KIESELMANN. The modular system makes it possible to equip or retrofit any valve according to your individual requirements: Always the right solution thanks to over 10,000 possible configurations.

From ergonomic, smooth-running handle to pneumatic actuators with end position feedback to the control head, our aseptic stainless steel valves impress with their ease of use. The flushing connections of the sampling valves allow safe and easy cleaning. Product pressures up to 10 bar (g) are reliably maintained by the newly optimized bellows.

Optional upgrade and retrofitting:

  • All actuation variants can be retrofitted
  • Electronic control elements
  • Control heads

The following drive concepts are available:

  • Manual operation (spring closing)
  • Manual operation (self-locking)
  • Pneumatic actuation
  • Pneumatic/manual actuation

• Individual equipment and retrofitting

• Working range up to 10 bar

• Easy maintenance

• Flushing connections

• Easy handling with automatic reset function

• Excellent cleanability

• Compact design

• Low actuation force

Versions:

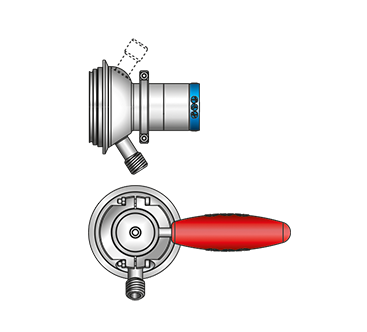

  • Aseptic sampling valve manual 6125xxx000

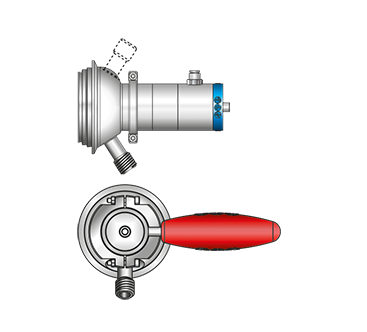

  • Aseptic sampling valve manual/pneumatic 6125xxx030

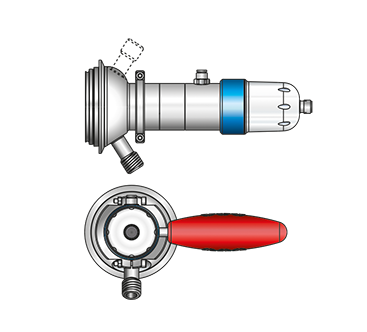

  • Aseptic sampling valve manual/pneumatic with end position feedback 6125xxx031

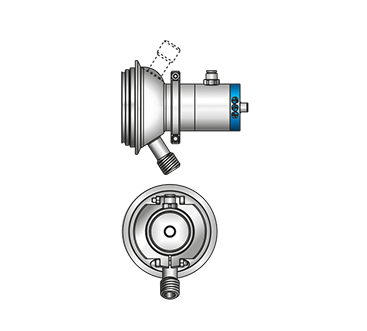

  • Aseptic sampling valve pneumatic 6125xxx020

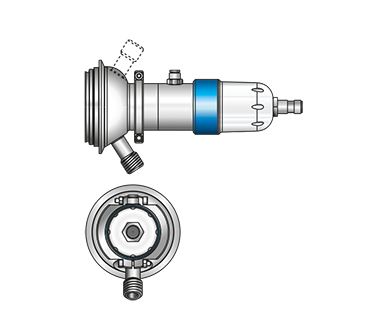

  • Aseptic sampling valve pneumatic with end position feedback 6125xxx021

Technical data

Sizes

DN 25–150 (product pipe) 1½“–4“ (product pipe) tank fitting

Seals

PTFE-FTM (bellow seal)

Materials

in product contact not in product contact

1.4404/AISI 316L 1.4301/AISI 304

Container and pipe connections

Inline clamp connection Container welding neck DN 25 welding neck pipe T-piece: DN 25–150 / 1½“–4“

Product outlet and flushing connection

DN 10 G 3/8 Clip-on manual steam valve pneumatic steam valve

Structures

End position feedback via inductive sensor control head

Actuator

manual (spring return) manual (self-locking) pneumatic pneumatic and manual

Product pressure

max. 10 bar (liquids)

Control air

4 to 6 bar

Operating temperature:

max. 90 °C CIP/SIP-capable up to 140 °C
